Premium Laminated Wooden Scantlings for Windows & Doors | PT TATA SUMBER INTI

ENGINEERED TIMBER • LAMINATED WINDOW & DOOR SCANTLINGS

EUROPEAN STANDARD DIN EN 860 • EXPORT GRADE

Laminated Wooden Scantlings

High-Grade Glued Timber for Premium Window & Door Framing

PT TATA SUMBER INTI manufactures engineered laminated scantlings specifically designed for European window and door manufacturers. Sourced from high-density Dark Red Meranti, Merbau, Teak, Pine, and selected Tropical Hardwoods, our scantlings deliver zero warping, superior thermal insulation, and exceptional structural stability.

Request Wholesale Quote Technical Specifications

QUARTER / SEMI-QUARTER SAWN

D4 / EN 204 WATERPROOF GLUE

100% CUSTOM ORDER SPECIFICATIONS

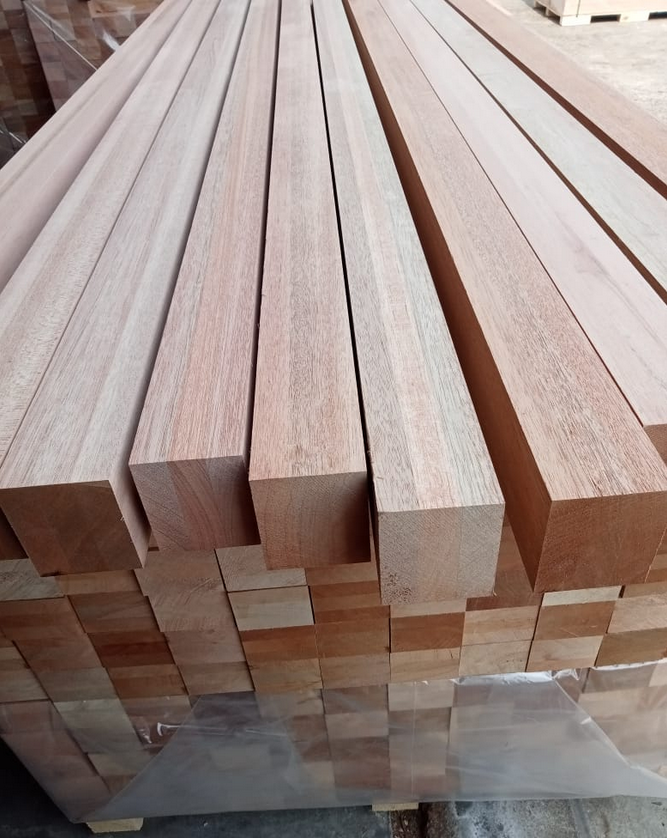

Red Meranti Laminated Scantlings by PT TATA SUMBER INTI

Engineered Timber Precision

Uncompromising Dimensional Stability for Joinery & Openings

Solid timber often bends or twists under changing thermal and humidity conditions. Our Multi-Layer Laminated Scantlings counteract natural timber tension by gluing 3 to 4 opposing wood lamellas together under extreme pressure using weather-resistant D4 adhesive standards.

We cut our raw material exclusively Quarter-Sawn and Semi-Quarter Sawn from high-grade timber logs with average diameters of 800mm to 1000mm. This results in practically defect-free, Select & Better grade laminates that meet strict European DIN standards for thermal window frame construction.

Whether you require Dark Red Meranti, Merbau, Pine, Teak, or custom Tropical Woods, we strictly manufacture based on direct client specifications and custom engineering requirements.

Standard European Classifications

Understanding Scantling Layer Structures

Laminated scantlings are engineered with 3 or more layers (Outer, Core, Inner). European window manufacturers utilize different layer combinations depending on visual exposure and budget requirements:

DKK

Solid Outer / Finger-Joint Core & Inner

Features one continuous solid outer face (D) for exterior weather exposure, combined with finger-jointed core (K) and inner (K) layers. Excellent balance of aesthetics and cost efficiency.

Solid Outer Face

DKD

Solid Outer & Inner / Finger-Joint Core

Features continuous solid faces on both outer (D) and inner (D) sides, sandwiching a finger-jointed middle core (K). Highly favored in European residential luxury window framing.

Dual Solid Faces

KKK

Full Finger-Jointed (All Layers)

All three layers utilize precision finger-jointed lamellas. Offers maximum structural stability, available in extended lengths up to 5900mm–6000mm. Ideal for opaque painted windows.

Max Lengths & Stability

DDD

Full Continuous Solid (All Layers)

100% solid continuous lamellas across all layers without finger joints. Reserved for ultra-premium natural stain window joinery with lengths ranging from 800mm up to 3500mm.

100% Full Solid

Technical Specifications

Laminated Scantling Export Portfolio

Our production strictly complies with international timber standards and European window construction specifications.

Dark Red Meranti Laminated Scantling

Shorea leprosula / Shorea platyclados

HS Code 4418.99 / 4407.29

Dark Red Meranti is the premium choice for European window and door systems due to its naturally fine grain, rich reddish-brown color, and excellent thermal insulation qualities. Cut exclusively from large-diameter logs (800mm–1000mm+), our scantlings ensure high-density consistency (450kg/m³ to 500kg+/m³) and superior durability.

Density	450 kg/m³ – 500+ kg/m³ (High-Grade Selection)
Moisture Content	12% ± 2% (Kiln-Dried to European Standard)
Cutting Method	Quarter-Sawn / Semi-Quarter Sawn
Standard Thicknesses	48mm, 63mm, 72mm, 84mm, 96mm (Custom available)
Standard Widths	86mm, 105mm, 115mm, 145mm (Custom available)
Solid Lengths (D)	800mm – 3500mm
Finger Joint Lengths (K)	Up to 5900mm / 6000mm
Adhesive / Glue Grade	D4 / EN 204 Waterproof & Weatherproof Polyurethane
Quality Grade	Select & Better, practically defect-free surface

Primary Applications

European IV78 / IV88 / IV90 timber window profiles
Exterior sliding glass door frames & sashes
Architectural timber curtain walls
Engineered door jambs and solid entry frames

European Quality Promise: Every lamella is graded for vertical grain orientation to guarantee zero thermal warping, offering seamless integration with European window machining lines.

Red Meranti Scantling Stock

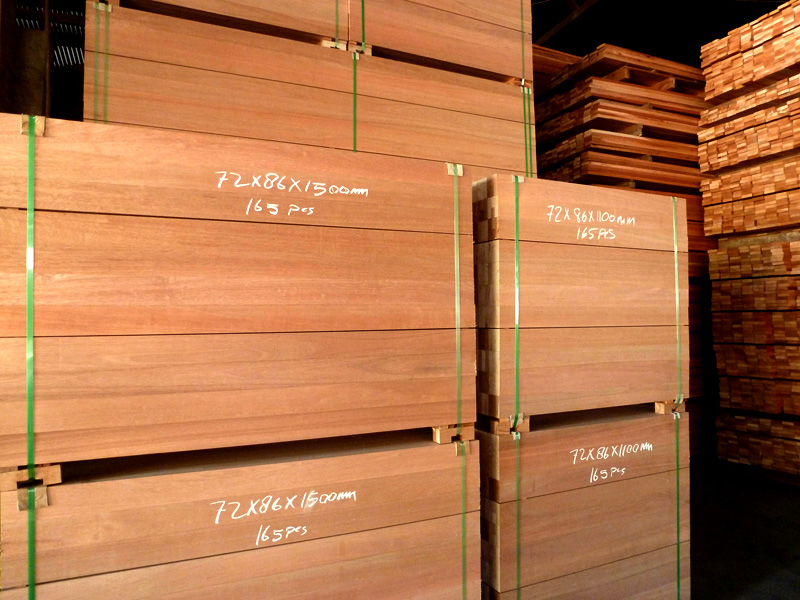

3-Ply Meranti Profile

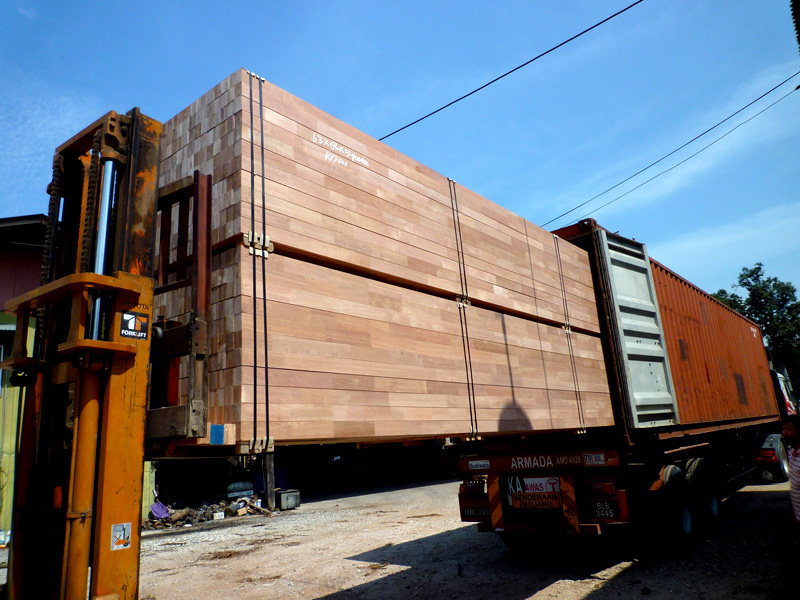

Export Packed Bundles

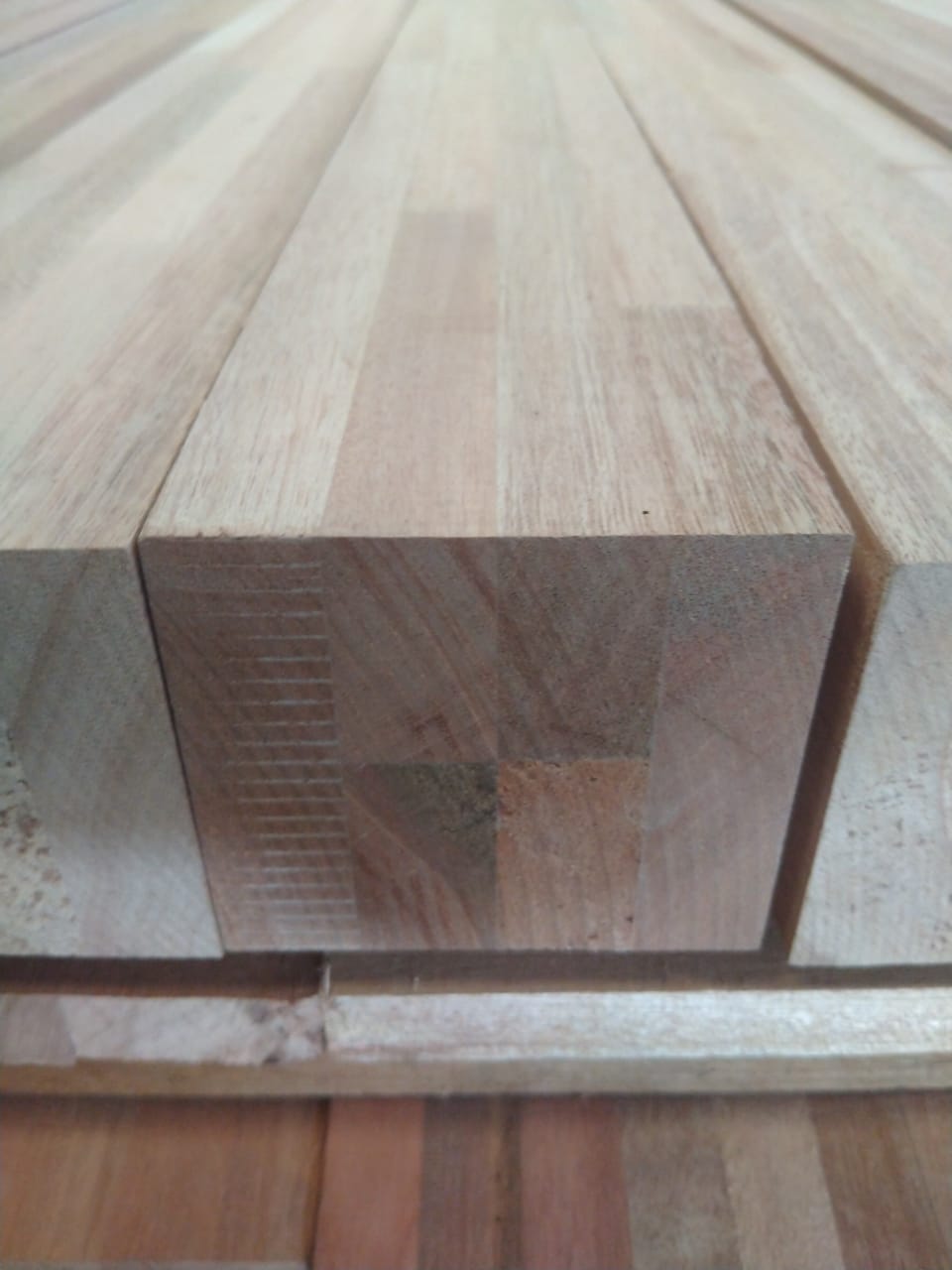

KKK Finger-Jointed Profile

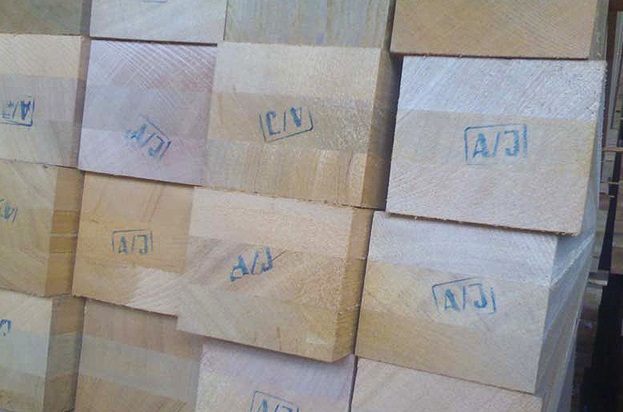

Tailored Wood Species & Custom Orders

In addition to Dark Red Meranti, PT TATA SUMBER INTI manufactures laminated scantlings in Merbau (Intsia bijuga), Teak (Tectona grandis), Pine (Pinus), and various Tropical Hardwood species. We work 100% on a custom order basis—delivering exact profiles, lengths, layer combinations (DKK, DKD, KKK, DDD), and specialized moisture levels according to your exact technical drawings.

Order Custom Profile

Direct Factory Manufacturer

Importing Scantlings for European Window Lines?

Contact PT TATA SUMBER INTI today for OEM laminated scantling supply contracts, custom dimensions, and container shipping schedules tailored to your factory specifications.

Request Factory Quote
